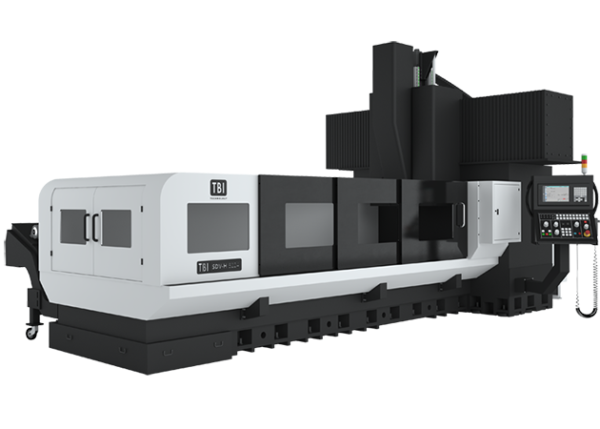

TBI SDV-H 4219

,

TBI SDV-H 4219

Main product features:

  • machine body made of cast iron
  • linear rolling guides in all axes
  • 3 guideways in X/Y axis and 4 guideways in Z axis
  • temperature stabilization of the spindle
  • possibility of 5-sided machining thanks to the use of heads
  • central lubrication system
  • high-quality ball and roller screws with bearings on both sides
  • high drive and torque capacities for high-performance machining

Standard equipment

  • Heidenhain TNC 620 control system
  • threading without compensating chuck
  • hand wheel
  • spindle with 20-4000 rpm gearbox
  • spindle blow-off system
  • air and liquid cooling system for the tool
  • USB + Fast Ethernet data transmission
  • hand guns for flushing the work surface (with water and air)
  • compressed air system
  • integrated chip conveyor - screw and belt conveyor

Optional equipment

  • controller Heidenhain TNC 640 / Siemens 828D / Fanuc 0iMF
  • spindle direct-drive (DDS)
  • cooling through the spindle (CTS) up to 50 bar
  • Z-axis travel extension up to 1400 mm
  • increase the clearance under the beam to 700 mm
  • 24 to 120 position tool magazine
  • Heidenhain measuring scales
  • magazine for vertical or horizontal tools
  • head magazine
  • possibility to mount different heads
  • tool measuring probe
  • detail probe

Technical data

Expand all

Longitudinal travel of the table - X axis mm 4200
Transverse travel - Y axis mm 1900
Vertical travel of the headstock - Z axis mm 760 / 1000 / 1200 / 1400
table surface mm 4000 x 1700
Distance between columns mm 2000
Spindle face distance - pow. table mm 165-925 / 165-1165 / 270-1030 / 270-1270 / 270-1470 / 270-1670
T-slots (number x width x spacing) 11 x 22 x 160
Table load kg 12000

Main drive ZF belt and gearbox
Spindle taper type SK50
Drive power (S1/S6) kW 18,5/22 (22/26)
Max. rotations rpm 20-4000 (30-6000 / 80-8000 / 100-10000 / 12000-24000)

Type drum / chain
Number of tools pcs. 24/32/40/60
Max. tool diameter (adjacent free space) mm 125 (210)
Max. tool weight kg 18/20
Max. tool length mm 350

X/Y/Z axes AC digital drive
Roller guideway in the X/Y/Z axis mm 65/65/45
X/Y/Z rapid traverse 10/10/12 (12/12/15)

Length mm 10270
Width mm 5565
Height mm 4250/4830/5510/6110
Weight kg 36500
