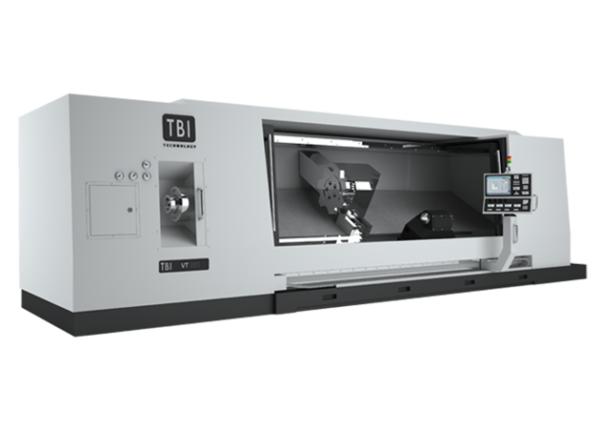

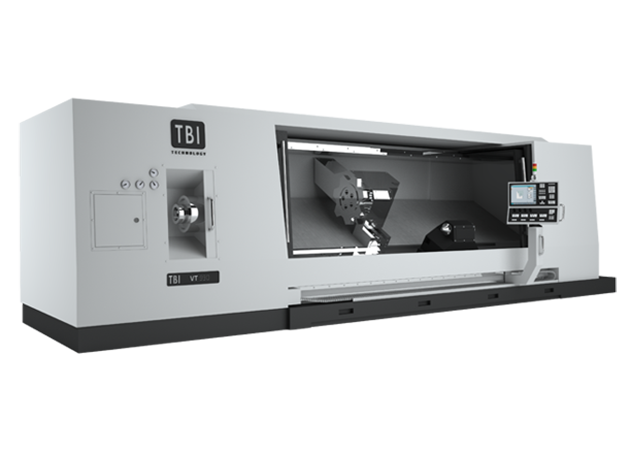

TBI VT 990

Tokarka VT
,

TBI VT 990

  • Send a request
Download the specification card

Main product features:

  • inclined bed made as a monolithic cast iron bed
  • high structural rigidity
  • Slide guides in all axes
  • central lubrication system
  • possibility to use heads with driven tools (MC model)
  • possibility to use self-propelled tailstock
  • through spindle hole diameter 265 mm
Categories: , Tags: , , , , , ,

Standard equipment

  • Fanuc 0iTF controller + Manual Guide I
  • 12-position quick-change turret VDI or BMT
  • 3-jaw hydraulic lathe chuck
  • tool cooling system
  • The maximum diameter of the rod in the spindle depends on the size of the handle
  • hydraulic tailstock & quill
  • cooling of the electrical cabinet
  • chain-type chip conveyor with chip cart
  • set of hard and soft jaws
  • part catcher

Optional equipment

  • Fanuc 21iTB control + Manual Guide I
  • Siemens 828D control
  • hand wheel
  • counter-spindle
  • programmable tailstock with hydraulic claw bushing
  • head with tension. tools
  • Y axis
  • oil skimmer
  • interface to bar feeder
  • rod feeder
  • high-pressure coolant pump 10/20 bar
  • part catcher
  • coolant filtration system
  • fixed or movable hydraulic supports
  • hydraulic handle with flange
  • tool measuring probe
  • Automatic tool measuring probe (can only measure on the spindle)

Technical data

Expand all

Max. diameter of the material above the bed mm 1150
Max. turning diameter mm 990
Maximum diameter of material over covers mm 990
Maximum turning length mm 900/1900/2900/3900
Bed tilt st. 45˚+ 15˚

X-axis travel mm 500+50
X axis travel speed m/min 16
Z-axis passage mm 930/1930/2930/3930
Z-axis travel speed m/min 15/12/10/8

Spindle passage mm 265
Max. bar diameter in spindle mm depends on chuck
Type of spindle nose A2-15
Main drive gearbox
Max. drive power kW 45 (60)
Max. rotations rpm 750
Size of lathe chuck mm 450 (530)

Tool socket VDI 60 / VDI 60 with live tools
Number of head positions pcs. 12
Maximum tool diameter mm 32
Head indexing time sec. 1,2

Diameter of the claw bushing mm 150
Inner cone of the claw bushing MT-6
Claw sleeve travel mm 150

Length mm 7750/8750/9750/10750
Width mm 3070
Height mm 3216
Weight kg 15050/17250/19450/21650
