TBI TC 300 Compact MC


TBI TC 300 Compact MC

Availability: to order

Main product features:

  • 45-degree slanted bed. made as monolithic cast iron
  • high structural rigidity
  • linear rolling guides in all axes
  • max. spindle speed 6000 rpm
  • central lubrication system
  • precision reciprocating ball screws
  • high-speed feeds in X/Z axes 30 m/min
  • LED panel for tracking machining processes
  • tiltable desktop

Standard equipment

  • Fanuc Mate 0iTD 8.4" control including Manual Guide 0i

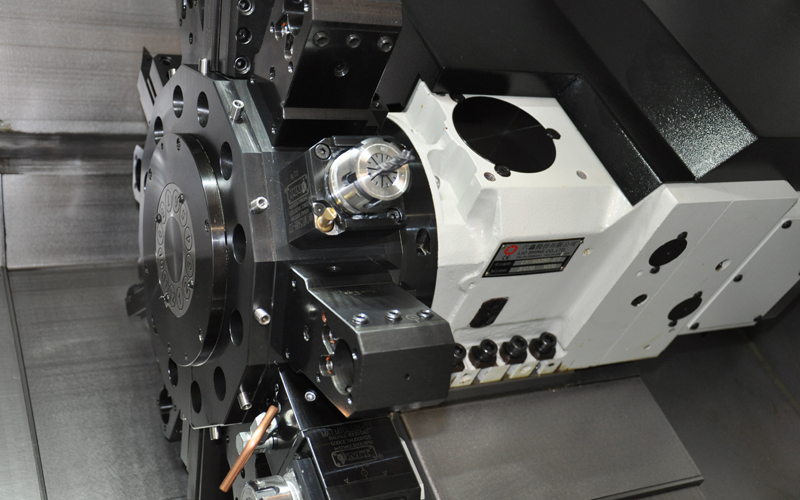

  • quick-change hydraulic turret VDI 30 - servo drive
  • turret with live tools

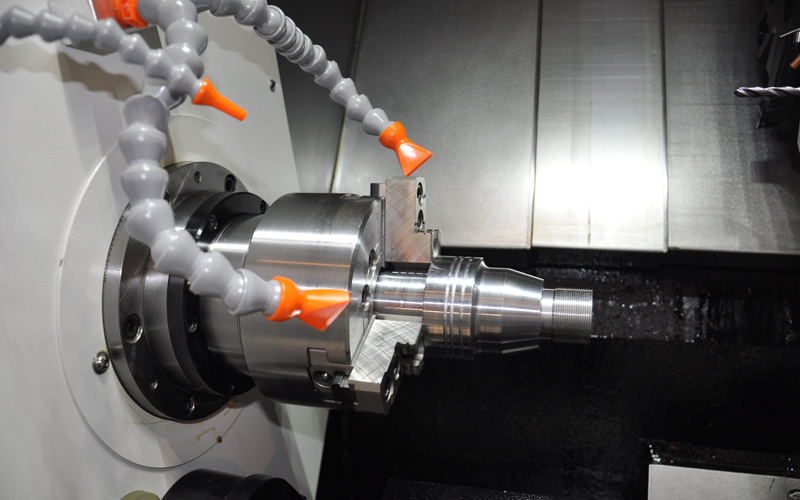

  • 3-jaw hydraulic turning chuck 169 mm
  • maximum bar working diameter in the spindle 42 mm
  • tool cooling system
  • manual tailstock with hydraulic claw bushing
  • interface to bar feeder
  • part catcher
  • part conveyor
  • chain-type chip conveyor with chip cart

Optional equipment

  • Fanuc 0iTD 10.4" control with Manual Guide I
  • increase the power of the main spindle to 11/15 kW
  • 3-jaw hydraulic lathe chuck 203 mm
  • C axis of the spindle
  • C axis of the sub-spindle
  • increase the diameter of the rod in the spindle to 60 mm
  • programmable tailstock
  • oil skimmer
  • bar feeder
  • tool touch probe

Technical data

Expand all

Max. diameter of the material above the bed mm 400
Max. turning diameter mm 380
Max. turning diameter (with workpiece catch) mm 200
Max. turning length (without handle) mm 300
X/Z-axis travel mm 200/300
Travel speed of the X, Z axes m/min 30

Through spindle hole diameter 43 (option 65)
Max. bar diameter in spindle 42 (option 60)
Spindle Head Type ASA A2-5 / A2-6
Main drive AC motor
Drive power kW 7,5/11
Max. rotations rpm 6000
Size of lathe chuck mm 169 (option 203)

Execution Servo + driven tools
Number of tools pcs. 12
Tool socket VDI 30
Max. tool dimension mm 20 x 20

Outer diameter of the claw bush mm 75
Inner cone of the claw bushing MT4
Claw sleeve travel mm 70

Length (with chip conveyor) mm 2600 (3200)
Width mm 1300
Height mm 1860
Weight kg 4200
