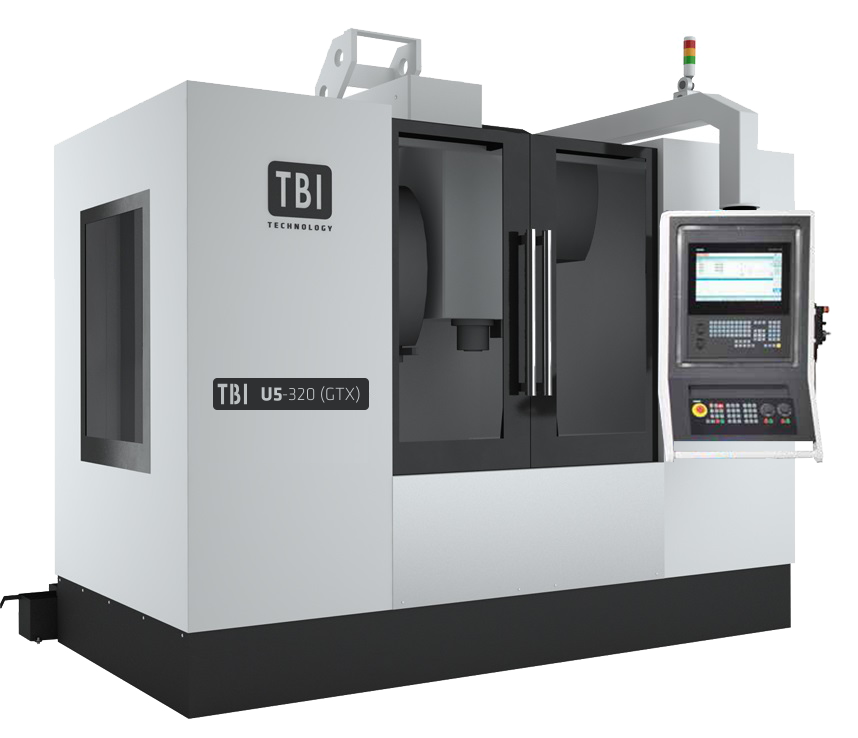

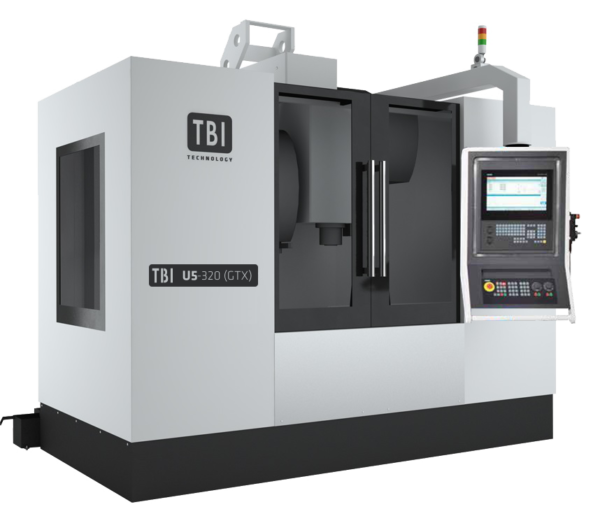

TBI U5-320 (GTX)

  • Original price was: 860,000,00zł.Current price is: 550,000,00zł.
  • Send a request
Download the specification card
Availability: In stock: 1 pc. delivery up to 3 weeks

Main product features:

  • 5-axis vertical machining center for 5-sided machining
  • machine body made of cast iron
  • linear scales in all axes
  • temperature stabilization of the spindle
  • central lubrication system
  • high-quality ball and roller screws with bearings on both sides
  • tilt-turn table 320 mm
  • 30 position tool magazine (ATC)
  • high drive and torque capacities for high-performance machining
  • high-speed double-arm tool changer - servo drive
  • full coverage of the workspace
Categories: , Tags: , , , ,

Standard equipment

  • Siemens 828 D + ShopMill controller, options: P17, P13, P22, P25, P1, P16, P28
  • rigid tapping system
  • MPG remote handwheel
  • spindle 12 000 rpm
  • cooling through the spindle (CTS) 20 bar
  • spindle blow-off system
  • Heidenhain linear scales
  • tilt-turn table with a diameter of 320 mm
  • oil skimmer
  • USB + Fast Ethernet data transmission
  • 24 position automatic tool changer (ATC) SK40
  • electrical cabinet air conditioning
  • hand guns for flushing the work surface (with water and air)
  • dynamic monitoring of collisions
  • bottom chip flushing system
  • scraped chip conveyor with cart

Optional equipment

  • tool touch probe
  • workpiece touch probe

Technical data

Expand all

Longitudinal travel - X axis mm 880
Transverse travel - Y axis mm 600
Vertical travel - Z axis mm 480
table surface mm Ø 320
T-slots (number x width x spacing) 5 x 14 x 100
Table load (5-axis operation) kg 150
Table load (3-axis operation) kg 200
Spindle face distance - pow. table mm 100 – 610
C-axis table rotation deg. 360˚
B-axis table tilt deg. +40˚ / -110˚

Main drive direct-drive
Spindle taper type SK40 (DIN69871)
Drive power (S1/S6) kW 10/15
Max. rotations rpm 12000

Type drum
Number of tools pcs. 24
Max. tool diameter (adjacent free space) mm 76 (127)
Max. tool weight kg 7
Max. tool length mm 250
Tool change time (T-T) sec. 1,3

X/Y/Z rapid traverse m/mm 36/36/36
Max. table speed in B/C axis rpm 25/25

Accuracy of machine positioning mm +/- 0,005
Repeatability of machine positioning mm +/- 0,003

Length mm 3948
Width mm 2120
Height mm 2800
Weight kg 6800
