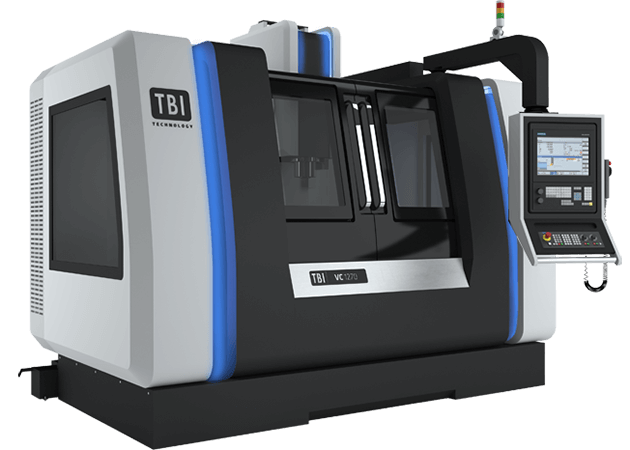

TBI VC 1060 Smart Mill New Line

,

TBI VC 1060 Smart Mill New Line

Availability: In production: 1 pc, delivery up to 10 weeks

Main product features:

  • machine body made of cast iron
  • structure based on cross slide table
  • linear rolling guides in all axes
  • temperature stabilization of the spindle
  • Z-axis balance unit
  • central lubrication system
  • high accuracy (+/- 0.005 mm) and repeatability of positioning (+/- 0.003 mm)
  • high drive power and high torques ensure high-performance machining

Standard equipment

  • Siemens 828D + ShopMIll controller with 15" touch panel
  • rigid tapping system
  • MPG remote handwheel
  • spindle 10 000 rpm
  • cooling through the spindle 20 bar
  • spindle blow-off system
  • air and liquid cooling system for the tool
  • USB + Fast Ethernet data transmission
  • oil skimmer
  • 24 position automatic tool changer (ATC) SK40
  • hand guns for flushing the work surface (with water and air)
  • bottom chip flushing system
  • Screw chip conveyor with cart
  • cooling of the electrical cabinet

Optional equipment

  • spindle direct-drive (DDS)
  • preparation for installation of 4 axes
  • numerically controlled 4 and 4/5 axes
  • tool touch probe
  • workpiece touch probe

Technical data

Expand all

Longitudinal travel of the table - X axis mm 1000
Transverse movement of the table - Y axis mm 600
Vertical travel of the headstock - Z axis mm 650
table surface mm 1160x 600
T-slots (number x width x spacing) 5 x 18 x 100
Table load kg 1000
Spindle face distance - pow. table mm 130 ? 780

Main drive drive belt / direct-drive
Spindle taper type SK40 (DIN69871)
Drive power (S1/S6) kW 11/23
Torque (S1/S6) Nm 70/148
Max. rotations rpm 10000

Type drum
Number of tools pcs. 24 (30)
Max. tool diameter (adjacent free space) mm 80 (150)
Max. tool weight kg 7
Max. tool length mm 300

Ball and roller screws in the X/Y/Z axes mm 40/40/40
Number of slides in X/Y/Z axes pcs. 2/2/2 (linear)
Feed rate in X/Y/Z axis m/min 36/36/36

Accuracy of machine positioning mm +/- 0,005
Repeatability of machine positioning mm +/- 0,003

Total power consumption kVA 35
Length (with chip conveyor) x width x height mm 2900 (3735) x 2100 x 2800
Weight kg 6800
Application of the machine tool
The TBI VC 1060 Smart Mill Vertical Machining Center is a general-purpose machine tool, ideal for those starting out in the machining industry. The design and standard of configuration enable roughing and finishing machining in small batch and repetitive production. The machines are used by our customers for service machining and in the production of parts for the automotive industry, among other things. The advantage of this model is the ability to machine tall parts, as the Z-axis travel is 650 mm, and the Siemens 828 D control used is very intuitive and easy to use. The ShopMill graphical interface facilitates quick programming of single models and small batch production without the need for CAM software. The standard block processing time is 4.5 ms. The economy of the solution was achieved through a closed equipment configuration that allows full functionality.



Read more about TBI VC 1060 Smart Mill
Pay attention to the dimensions of the machine in relation to the possible range of work. The machine is constructed as compactly as possible, and the feed speed in the X and Y axes is 36 m/min. The applied cart system with scrapers and automatic internal lubrication is selected for difficult industrial conditions and high dustiness. Ergonomics and operator comfort are enhanced by the ability to drive the table up to the machine guard and load it. The TBI VC Smart Mill machining center features a highly rigid structure and high repeatability of machining, and machining time is reduced to the maximum by using a double-arm tool changer and a drum tool magazine that rotates the shortest path. The important thing is that the tool is assigned in the control, not in the stock. By using Z-axis strain relief, the load on the motor is reduced by about 60%, which increases its service life and reduces energy consumption
