TBI H 110-130-160 RAM

_Make

Wytaczarki CNC, Ze stołem obrotowym / jezdną kolumną

TBI H 110-130-160 RAM

Wyślij zapytanie

Pobierz kartę specyfikacyjną

Główne cechy produktu:

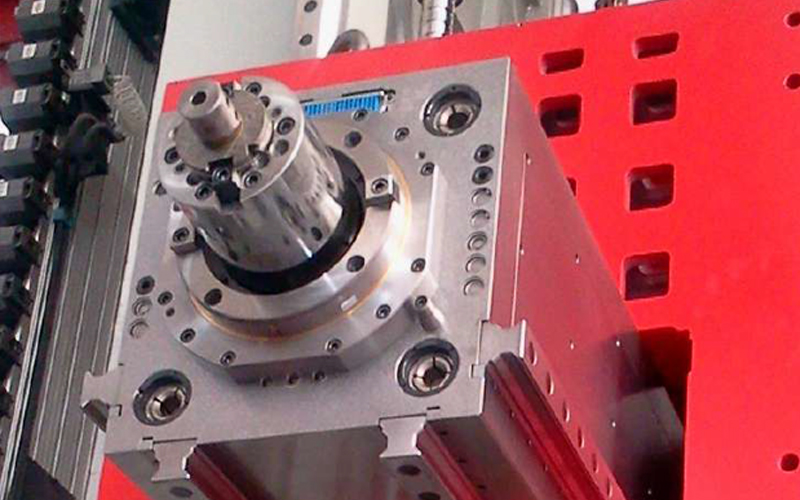

Głowica centralna pionowa (syst em BOX in BOX).
Wrzeciono wytaczarskie wykonane z żelaza Vickers o twardości 1000.
Wysuwany suwak w modelu RAM.
Szeroka gama stołów - ruchome / obrotowe / stałe o nośności nawet do 60 ton.

Kategorie: Wytaczarki CNC, Ze stołem obrotowym / jezdną kolumną Tag: wytaczarka

Wyposażenie standardowe

sterowanie CNC – najnowsza wersja - HEIDENHAIN, SIEMENS
szafa elektryczna klimatyzowana
napędy osiowe
przekładnia ZF, 2 stopniowa
centralny układ smarowania
napędy kulowo-toczne osi Y-W
wrzeciennik wraz z układem kompensacji
osłony teleskopowe stalowe
centralny układ chłodzenia

Wyposażenie opcjonalne

na zamówienie - wg potrzeb klienta

Dane techniczne

Rozwiń wszystko

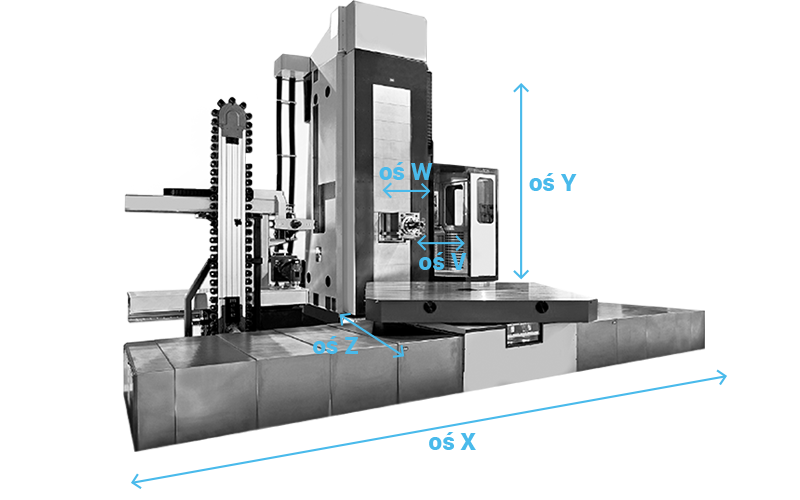

Oś X	mm	3600-5100 (co 500 mm)
Oś Y	mm	2000-3500 (co 500 mm)
Oś Z	mm	1600/2600
Oś W (wysuw suwaka)	mm	1000/1200
Oś V (pinola)	mm	800/1000/1200

Ruch		jezdno-obrotowy
Powierzchnia stołu	mm	1800×2200 / 1800×3000
Obciążenie stołu	t	10-40
Prędkość obrotowa	g/1′	0,005-5 (4)

Średnica pinoli	mm	110/130/160
Stożek wrzeciona		ISO 50-7388/1
Obroty	obr/min	3000
Maks. moc	kW	100
Maks. moment obrotowy	Nm	10000
Siła zaciągu narzędzia	daN	3200

Szybki posuw

mm/min

25000
